Gas Buster
Vacuum Insulated Portable Tank
Product Description
As fluids circulate from the well and through your piping system, they enter the Gas Buster first. The unit acts as a buffer by creating a controlled “hold-up” volume. This temporary pause slows the flow, providing the precise retention time necessary for trapped gas to safely separate and escape from the liquid.
Benefits & Applications
Testing and inspection are in accordance with Shell Standard OPS0055.
All welding are in accordance with AWS D1.1 Structural Welding Code.
3-Semicircle Baffle Plates: 0.5” ASTM A36 Plate installed at 30° from level with 15–1-3/8” evenly spaced holes to aid in separation of gas.
Highly portable skid configuration complete with a personnel platform, telescopic support legs, and fully certified four-point lifting pad-eyes.

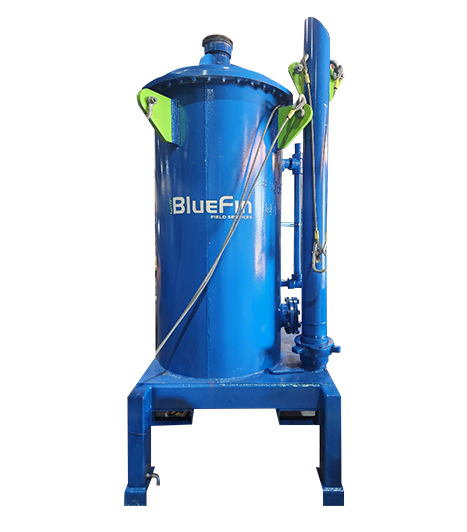

Gas Buster

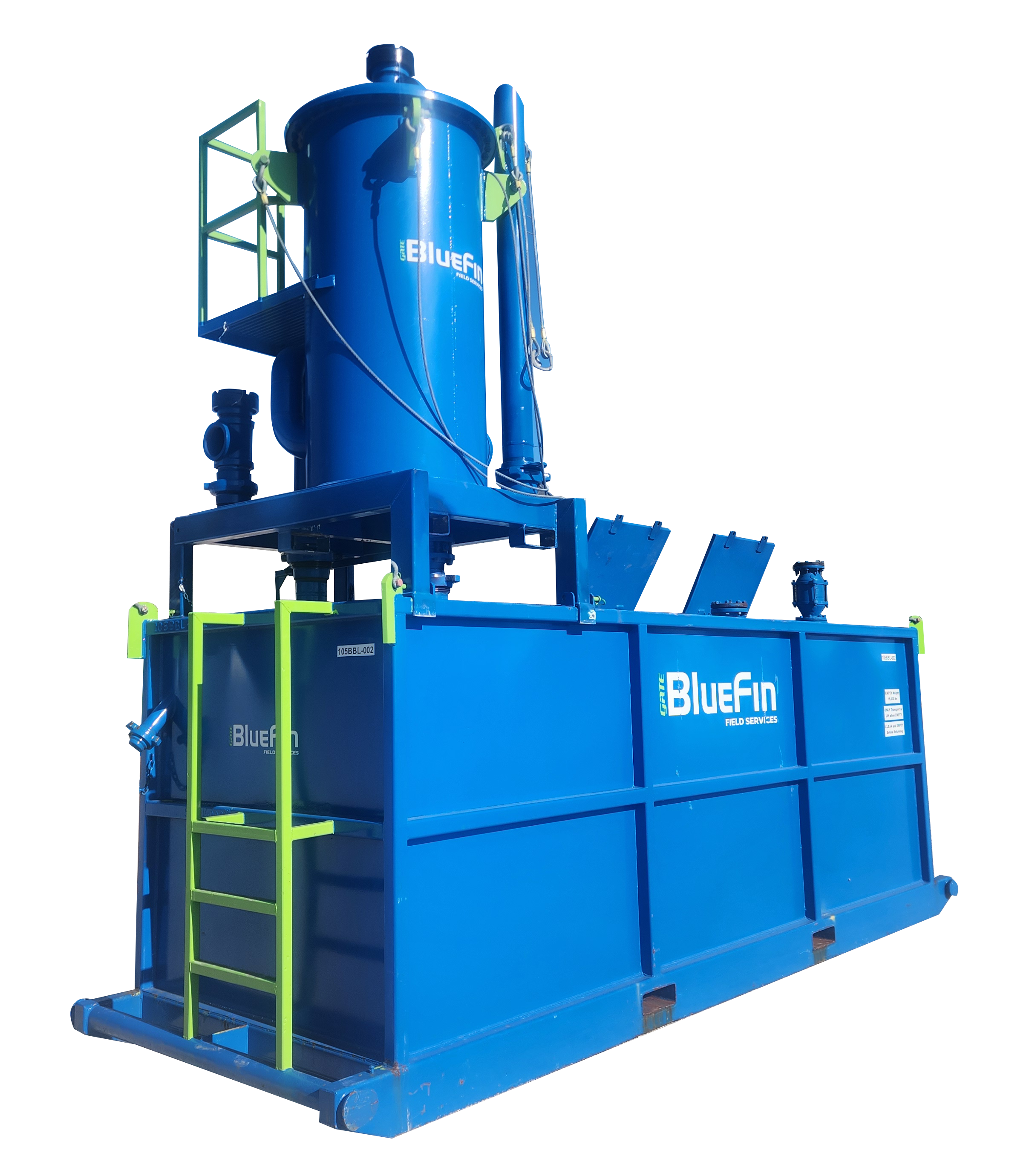

Gas Buster on top of 105 BBL tank
General Specifications
Empty Weight: 4,000 LBS
Max Lift Weight/Gross Weight: 6,750 LBS
(Full of Water)Gas Buster Tube Dimensions: 72” H x 113” L
Rolled to 36” ODBase Plate Dimensions: 48” W x 60” L
