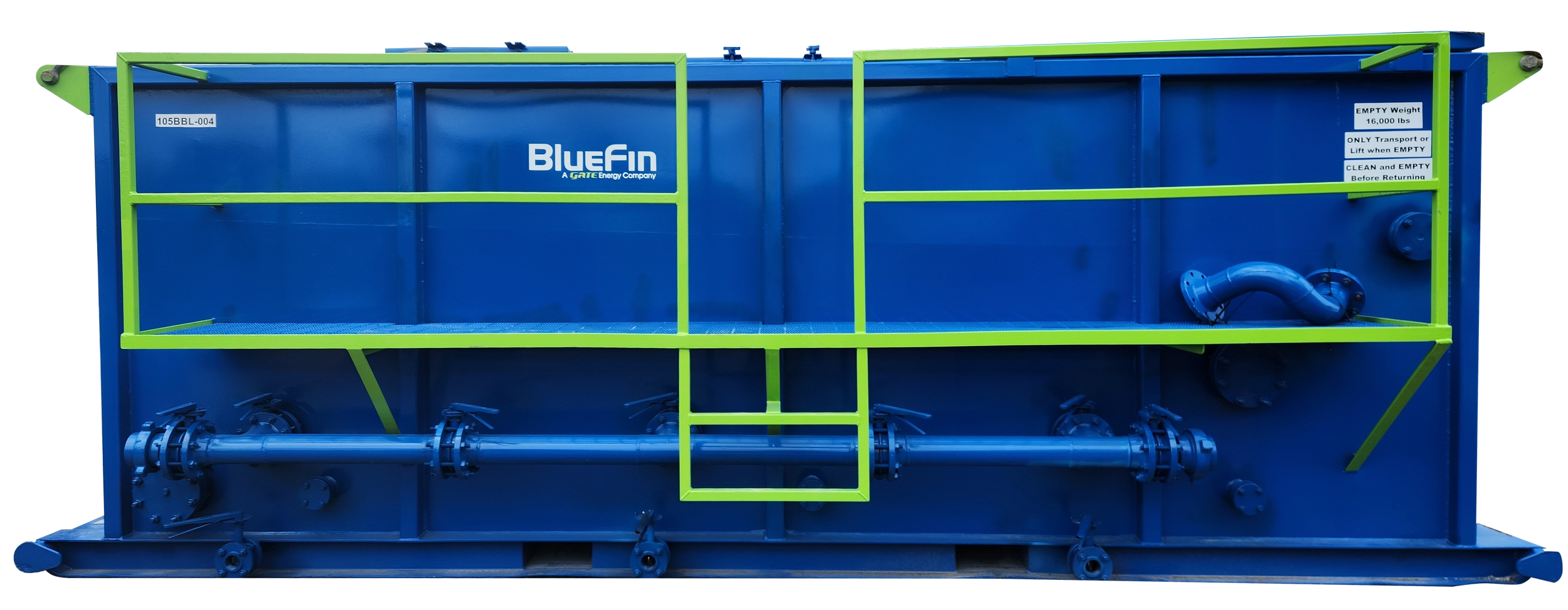

105-BBL Tank

Three-Compartment Fluid Handling Tank

---

Product Description

The 105-barrel (BBL) fluid handling tank is a closed-top, three-compartment tank and can be used for various types of applications including, but not limited to:

• General Water Handling

• Hydrocarbon Fluid Handling

• Waste Fluid Handling

• Break Tank, Weir Tank, Water Transfer Tank, Gel Storage Tank, etc.

Benefits & Applications

• Outfitted with vents, hatches and 4” piping and valves.

• Designed to operate at atmospheric pressure conditions.

• The weir system’s three compartments allow for separation of fluids during flushing and filtration work.

• Can be used with a gas buster that attaches to the top of tank above the first stage compartment.

General Specifications

• Lifting: SEPCO Design

• Max Capacity: 105 BBL

• Empty Weight: 16,000 LBS

• Max Weight with 60 BBL Seawater: (8.55 LBS/GAL) 53,705 LBS*

• Dimensions: 246” L x 102” W x132” H

• Compartments: 3

*Tank to be lifted ONLY when empty.

---
