HLD

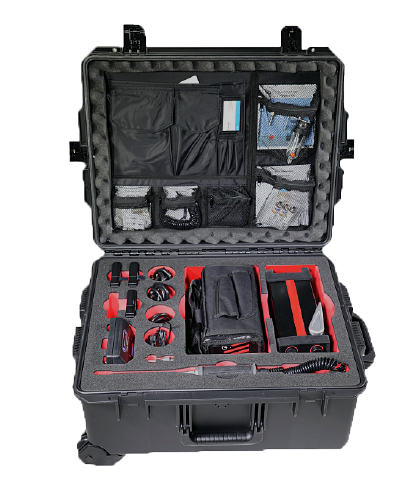

Helium Leak Detector
Product Description
The Helium Leak Detector (HLD) is the highest quality product delivering precision, stability and accurate leak measurements down to minute levels with absolute confidence. No mains power required, with up to 9 hours battery life giving freedom when locating leaks on site.
Benefits & Applications
Light and easy to carry into restricted working areas and can also be used on the bench in a production line.
Fast start up time averaging 5 minutes.
Color touchscreen readout, variable frequency audio output.
Immediate shut down time.
Up to 9 hours battery life - dual battery, single battery up to 4.5 hours.
Small footprint and is portable with a weight of only 4.2kg, including 1 battery and harness.
Warm up period: Recommend 15 minutes for best results.
Transportable carrying handle and body harness.
Battery charger power supply: In 100-240 vac 50/60 Hz.
Leak range: 30 to 1,000 SCF/yr for 1% Helium and 99% Nitrogen.
Min Detectable Helium Leak Rate
Min Helium Concentration: 2 PPM
Accuracy: 30–300 SCF/yr = ± 2 SCF/yr | 300–1,000 SCF/yr = ± 5 SCF/yr
With 1% Helium in Nitrogen: 1 SCF/yr
Response Time: 2 Seconds
Clean Up Time: Avg 30 Seconds for 1% He 100 SCF/yr
Other Specifications
Normal Operating Temp: +5 to +40 °C
Humdity: 90% RH (Non-Considering)
Dimensions: 9.8” L x 7” W x 3.94” D
Battery Type: Lithium Ion
Equip Installation: Max Altitude 2,000M
