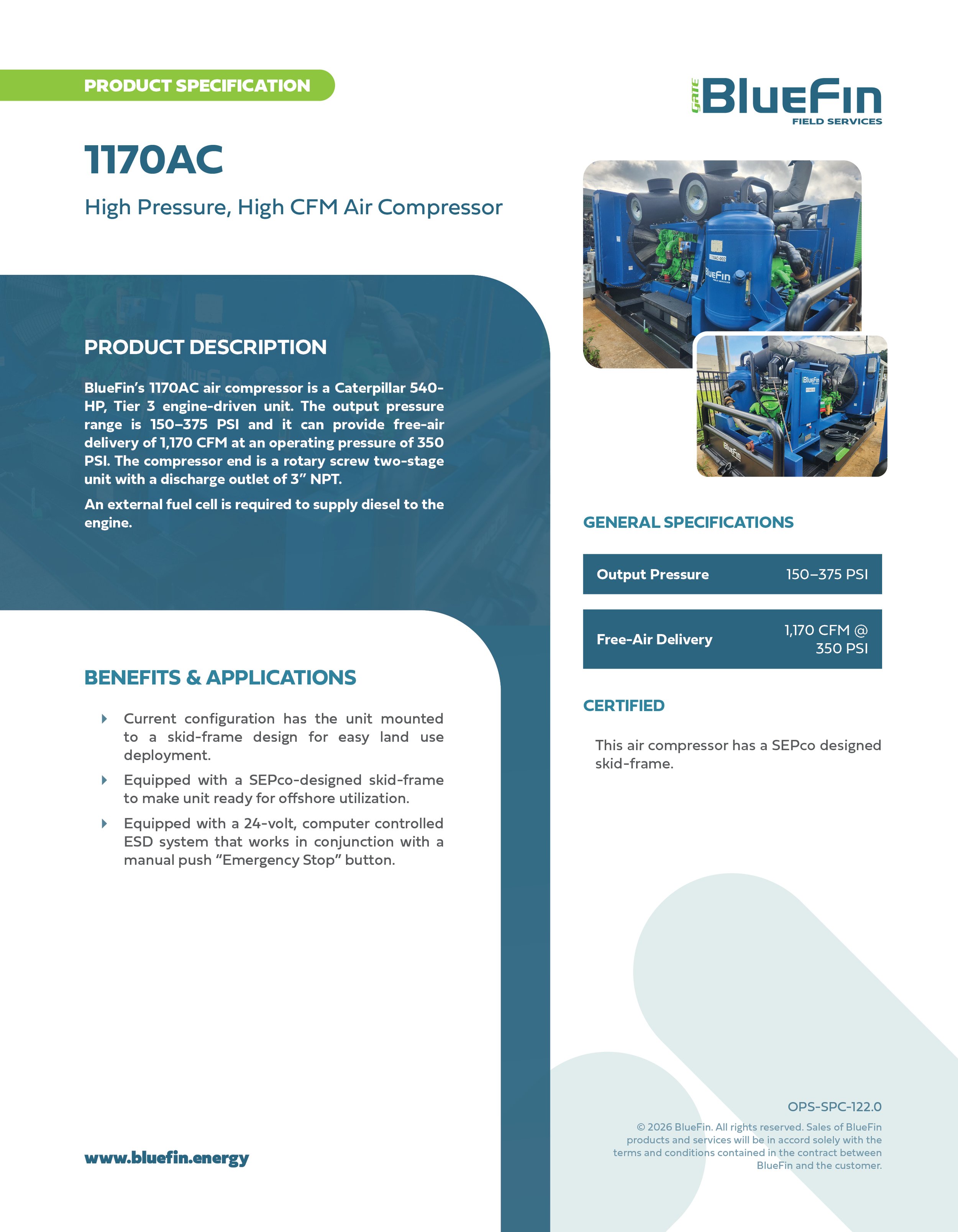

1170AC

High Pressure, High CFM Air Compressor

---

Product Description

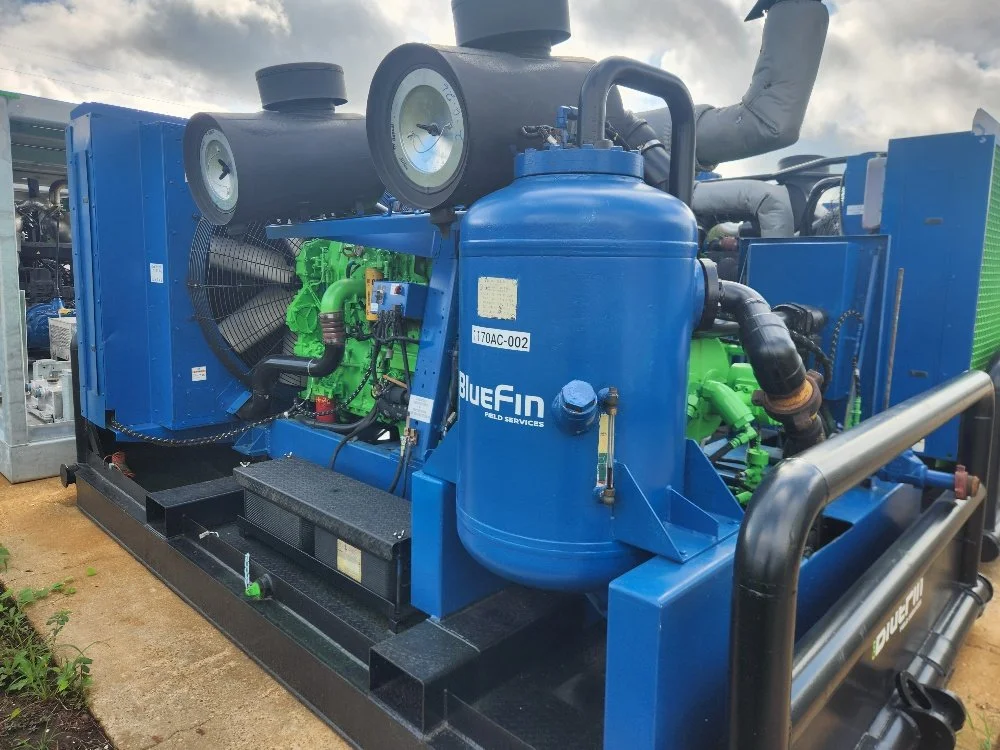

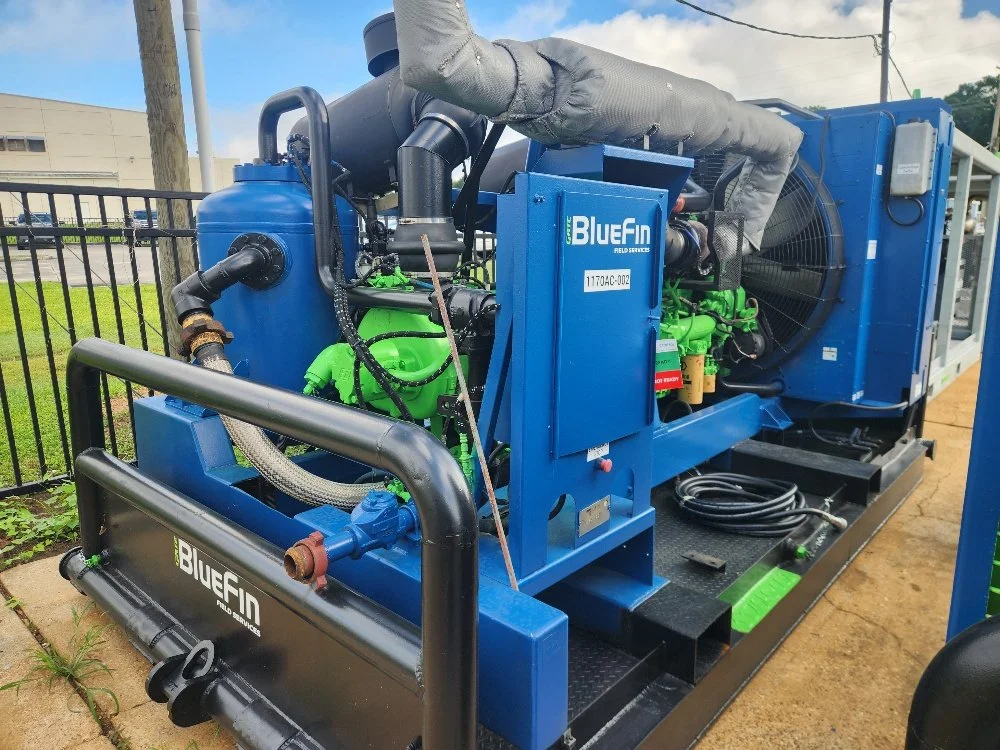

BlueFin’s 1170AC air compressor is a Caterpillar 540-HP, Tier 3 engine-driven unit. The output pressure range is 150–375 PSI and it can provide free-air delivery of 1,170 CFM at an operating pressure of 350 PSI. The compressor end is a rotary screw two-stage unit with a discharge outlet of 3” NPT.

An external fuel cell is required to supply diesel to the engine.

Benefits & Applications

• Current configuration has the unit mounted to a skid-frame design for easy land use deployment.

• Equipped with a SEPco-designed skid-frame to make unit ready for offshore utilization.

• Equipped with a 24-volt, computer controlled ESD system that works in conjunction with a manual push “Emergency Stop” button


General Specifications

• Output Pressure: 150–375 PSI

• Air-Free Delivery: 1,170 CFM @

  350 PSI

Certified

This air compressor has a SEPco designed skid-frame.

---
