400AC

Diesel-Driven Air Compressor

---

Product Description

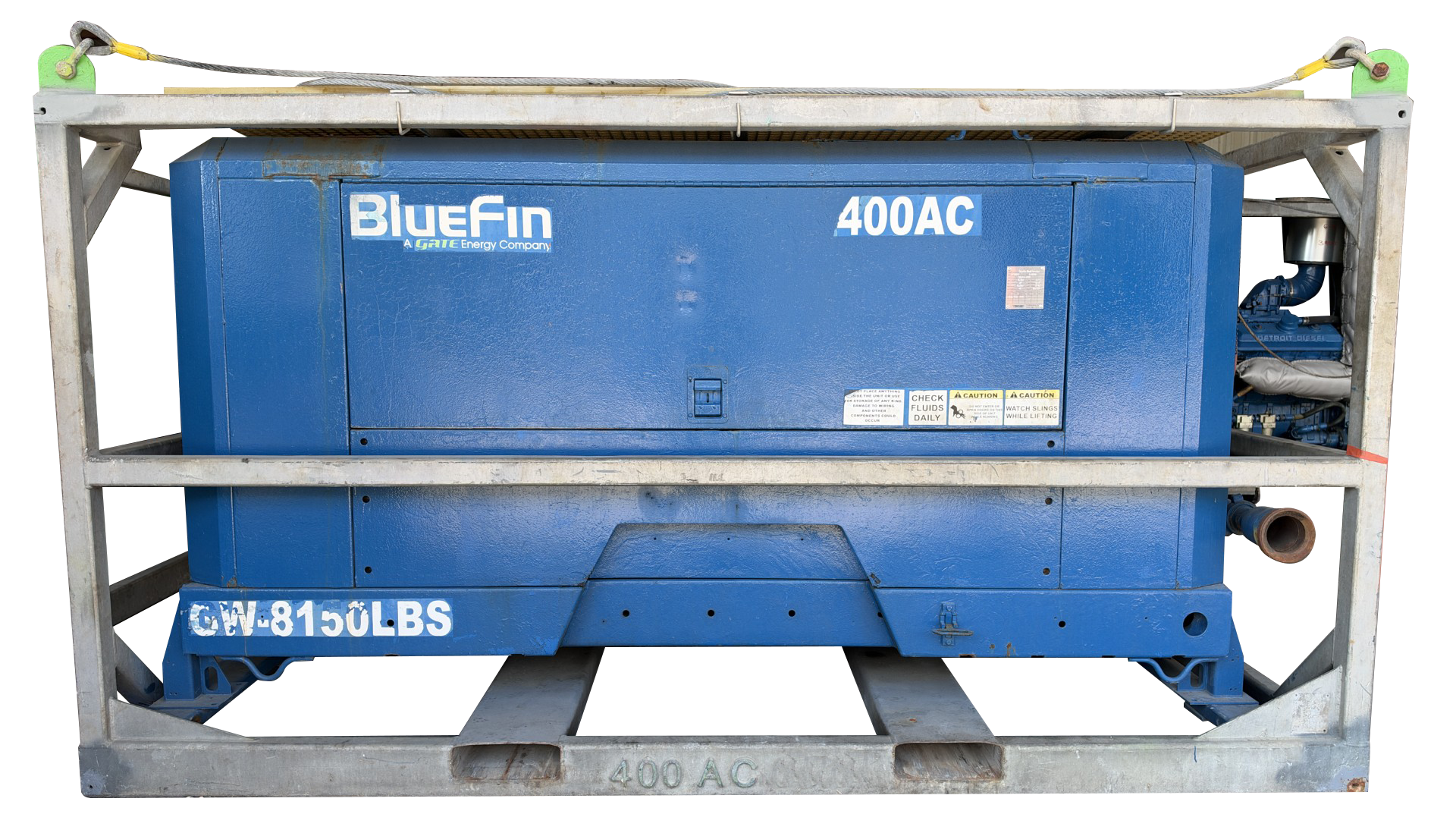

The 400AC Air Compressor is a John Deere engine driven unit. The output pressure range is 150–200 PSI and it can provide free-air delivery of 400 CFM. The compressor end is a rotary screw two-stage unit with a discharge outlet of 2” NPT and 1” crowsfoot hose connections.

Benefits & Applications

• Designed to be a stand-alone, diesel-driven unit.

• Suited for pigging, dewatering, and line blowing operations.

• Supports pipeline drying when paired with an air dryer.

• Can feed nitrogen membrane units and boosters, or be manifolded with additional units for higher volumes.

• 73-gallon fuel tank for long run times between refuels.

• Galvanized steel skid for corrosion resistance in marine and coastal environments.

• 2” NPT discharge and 1” crowsfoot connections for process and utility air.






General Specifications

• Weight: 8,150 LBS

• Dimensions: 105” L x 63” W x 60” H

• Output: 400 CFM / 200 PSI

• Engine: John Deere 6068H

• Fuel Tank: 73 GAL

Sling

5/8” Four Leg with Master Link

Certified

This air compressor has a SEPco designed galvanized steel skid-frame.

---
