NP-180E-02
Self-Contained Nitrogen Pumping Skid
Product Description

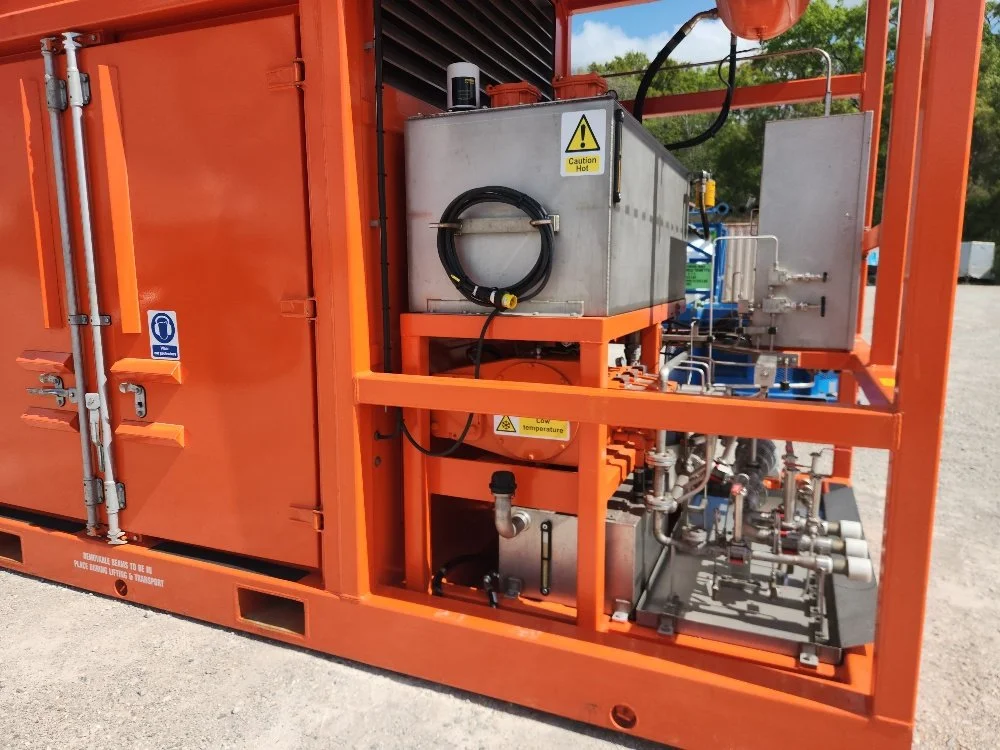

The Liquid Nitrogen Converter is a self-contained unit, assembled on a portable skid obtaining liquid nitrogen from an external storage tank and delivering gaseous nitrogen for external use. The system is capable of delivering 180K SCFH of nitrogen up to 10,000 PSI as gas at a temperature of approximately 70°F.
Benefits & Applications
Designed to be a stand-alone unit.
Full containment skid under pump and engine.
Operation, controls, gauges and indicators are inside the control box for easy accessibility.
Forklift pockets for easy maneuvering around jobsite.
DNV Zone 2 Classification.
EN 1834-1:2000 – Reciprocating internal combustion engines. Safety requirements for design and construction of engines for use in potentially explosive atmospheres.
EN 60079-17:2014 – Explosives atmospheres Part 17: Electrical installations inspection and maintenance.
General Specifications
Frame: DNV 2.7-1 Certified, Painted Carbon Steel
Weight: 36,375 LBS
Dimensions: 238”L x 96” W x 128”H
Max Flow Rate @ 70°F: 180,000 SCFH
Max Working Pressure: 10,000 MAWP
Pump Specs
Tier 3/Stage IIIA, Volvo Penta D16
