180KLNP-001

Self-Contained Nitrogen Pumping Skid

---

Product Description

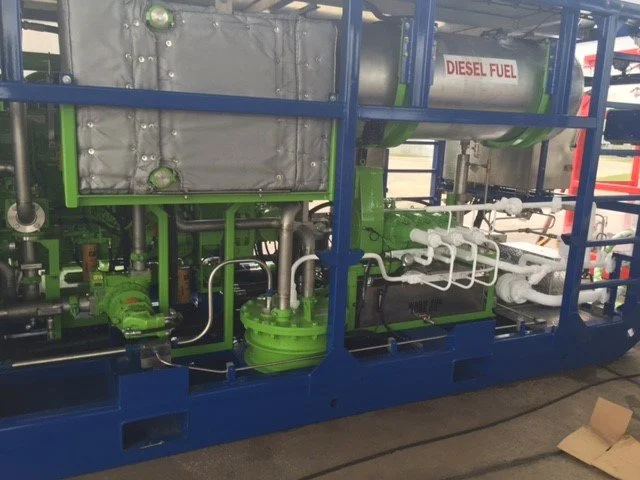

The Liquid Nitrogen Converter is a self-contained unit, assembled on a portable skid obtaining liquid nitrogen from an external storage tank and delivering gaseous nitrogen for external use. The system is capable of delivering 180K SCFH of nitrogen up to 10,000 PSI as gas at a temperature of approximately 70°F.

Benefits & Applications

• Designed to be a stand-alone unit.

• Full containment skid under pump and engine.

• Operation, controls, gauges and indicators are inside the control box for easy accessibility.

• Forklift pockets for easy maneuvering around the jobsite.


General Specifications

• Frame: SEPco Certified, Painted Carbon Steel

• Weight: 23,000 LBS

• Dimensions: 200”L x 100”W x 96”H

• Max Flow Rate @ 70°F: 180,000 SCFH

• Max Working Pressure: 10,000 MAWP

---
