GD-600

BlueFin Specification
Written By GATE Energy

Diesel Driven Triplex Pump

Product Description

The Bluefin GD-600 Triplex pump is powered by Cummins Tier 4 diesel L-6 engine. The unit is a dual skid configuration to reduce the lifting weight. The unit is built to DNV CN 2.7-1 specifications and is rated for Class 1 Division 2 applications. These pumps are used for Pipeline filling, pigging, volume hydro testing, and chemical injection/treating. Each unit is shipped with a Spare Parts box with items such as engine and pump filters, fluids, and fan belts. The GD-600 unit does not pull a suction and therefore it needs an adequate gravity feed or charge/supply pump for it to operate as designed.

Benefits & Applications

  • Designed to be a stand-alone unit.

  • Digital stroke counter and flowmeter used for GPM calculations.

  • Forklift pockets for easy maneuvering around the job site.

  • Containment skid under pump and engine.

  • Spares parts box with filters, belts, pump parts, fluids for field servicing.

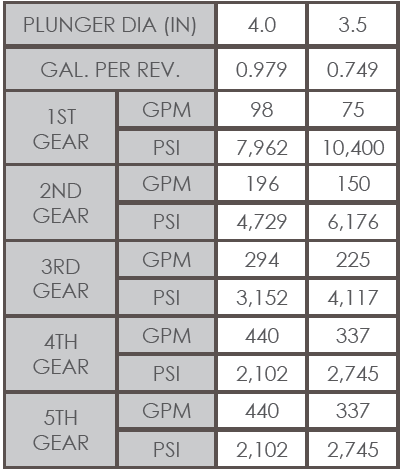

Pump Output Specs

  • Intermittent duty is a full maximum situation so that is why it is limited to 30 minutes on and 30 minutes off.

  • Refer to Operating Procedure for calculation of other Duty Periods and Pump Cycle Times.

  • Due to power losses and other contributing factors, maximum duty points above may not be achievable in every field situation.

General Specifications

  • Frame: Steel

  • Engine Weight: 18,000 lbs

  • Dimensions: 132”L x 94”W x 117”H

  • Pump Weight: 10,500 lb

  • Pump Dims: 96”L x 94”W x 116”H

Slings

Four Leg w/ Master Link and shackle lock thimble ends.
