Sapphire Gauges
Proprietary piezo-resistive technology to digitize pressure and temperature data downhole
Solutions:
Downhole Pressure & Temperature
Advantages:
Piezo Hybrid Gauges – based on Silicone Sapphire Piezo-Resistive transducer to deliver near Quartz performance at a lower cost. • Suited for long term data quality and reliability.
The SAU can be powered using grid power or solar power
Product Description:

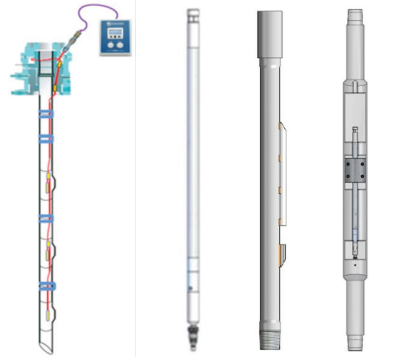

Permanent Sapphire Pressure Gauges use proprietary piezo-resistive technology to digitize pressure and temperature data downhole and then transmit to the surface using a high speed, digital telemetry link. Gauges connect to the Carrier using a Pressure Testable AUTOCLAVE metal-tometal seal connection. Several designs are available as tubing-ported or annularported built as Full Body Carriers, Machined Coupling Carriers or Welded Lug Carriers. The TEC cable connects to the gauge using a choice of “cable-heads” – sweet or sour, 1/4” or 1/8” – in addition, a range of pressure testable cable-heads are available when using 1/4“ TEC cable. The surface acquisition unit (SAU) provides power and acts as a memory for downhole gauges in permanent completions as well as providing the communications hub for SCADA or real-time transmission. The SAU links to the gauges downhole through the Tubing Encapsulated Cable (TEC) and the Well-Head Outlet (WHO). The SAU can also be used to program and interrogate the downhole Permanent Pressure Gauges.
